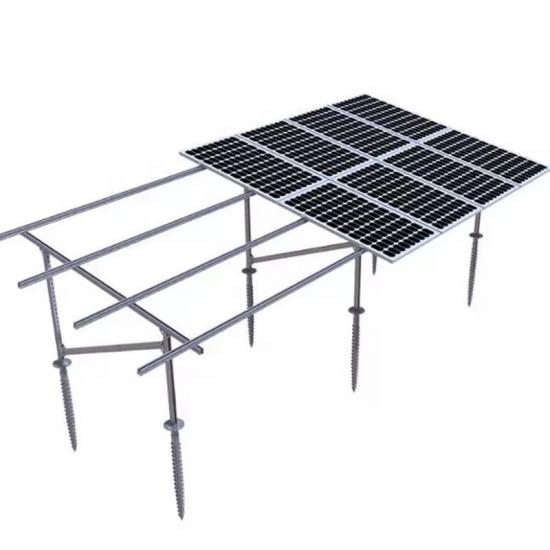

Zn-Al-Mg Steel Ground Mounting System

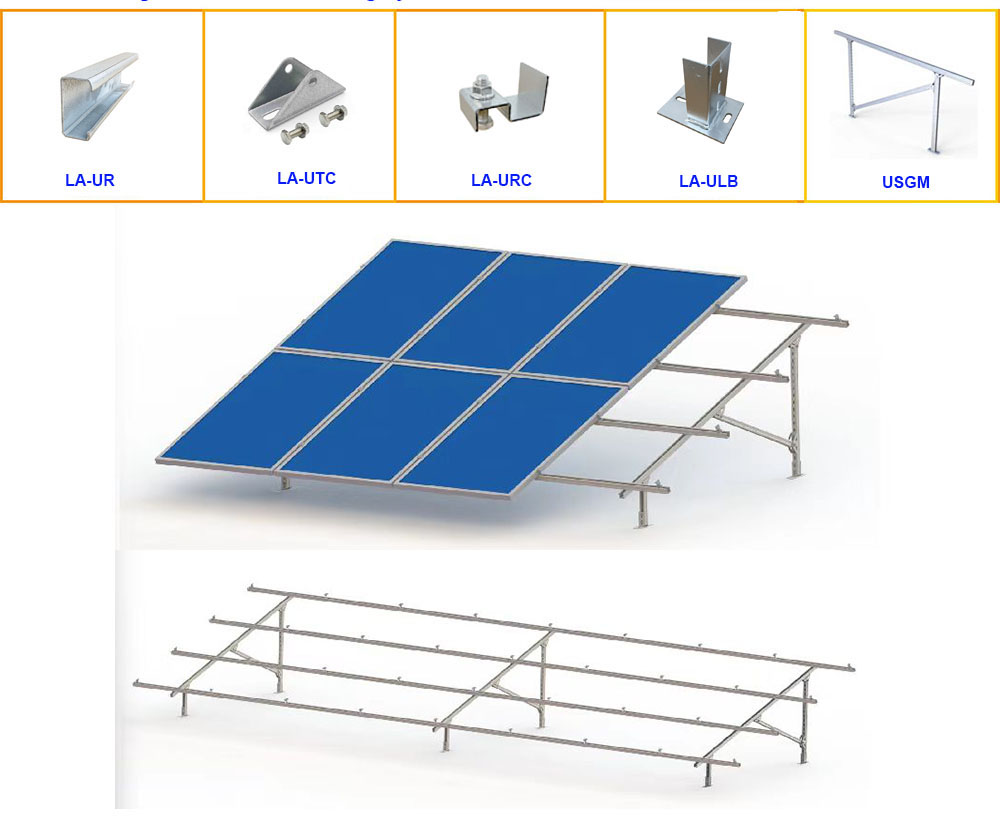

The LARGE ZAM Steel Ground mounting system has been developed as a universal PV module, mounting system for open space ground installations. The system is composed of Zn-Al-Mg coated U steel support pipe, U steel rails, and the special modules with U rails, U rail connecter, triangle fitting, ground screws, and a high degree of pre-assembly, easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structural strength, and the appearance.

LARGE Energy ZAM Steel Ground mounting rails adopt ZAM coated steel, with a surface coated thickness of more than 275g/m2.

The coated thickness applied complies with GB/T 2518-2019.product to be anti-corrosive, anti-rust. Every bolt and nut.

• Brand:

  LARGE

• Item No.:

  LA-UGM

• Payment:

  T/T or LC

• Product origin:

  Xiamen China

• Color:

  Natural or customized.

• Shipping port:

  Xiamen Port,China

• Lead Time:

  10 work days after receipt of deposit

• Installation Site:

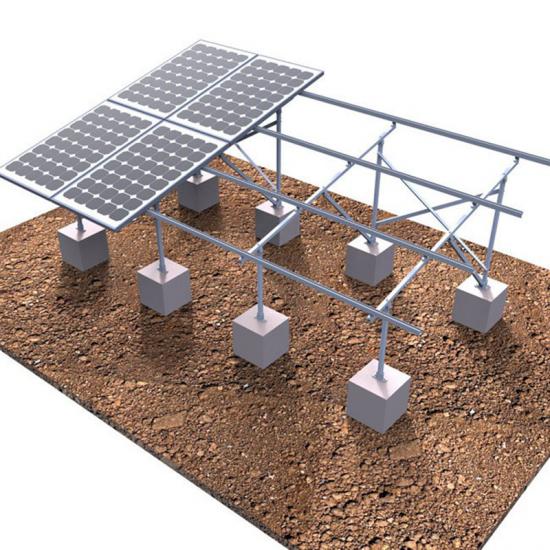

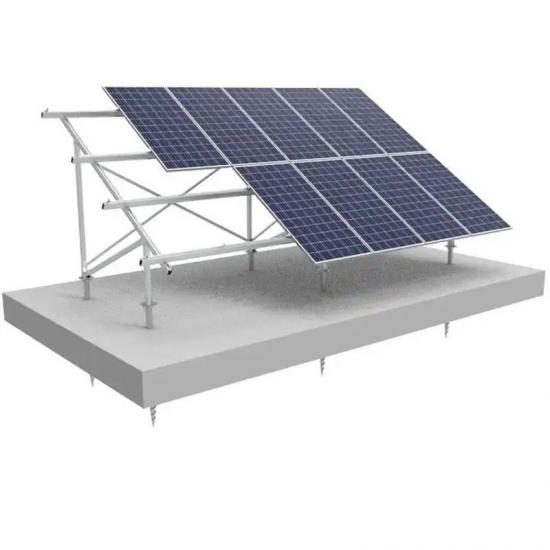

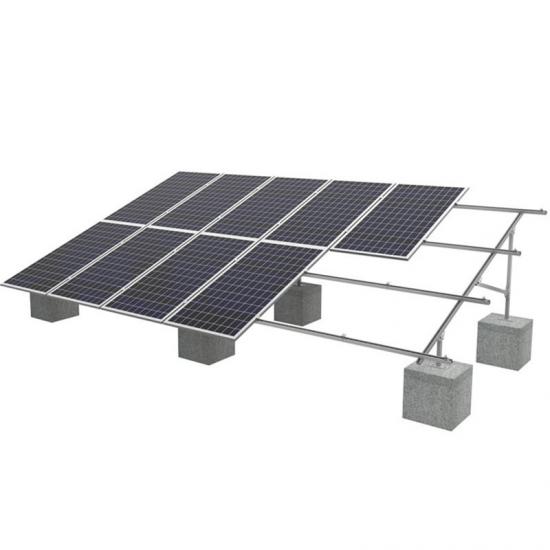

  Concrete Foundation & Ground Screw

• Raw Material:

  Aluminum Alloy 6005-T5 & Zn-Al-Mg Coated Steel

• Surface Treatment:

  Anodized, Zn-Al-Mg Coated Steel

• Wind Load:

  Upto 60m/s

• Snow Load:

  Upto 1.5KN/m2

• Standard Compliance:

  AS/NZS1170.2 ; SGS and CE Certification.
